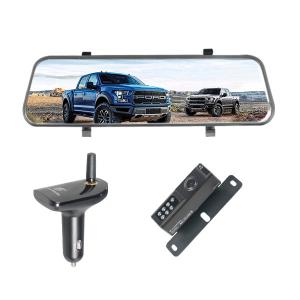

10" Mirror Dash Cam Wireless Rearview Backup Camera DVR Function
Wireless Rearview Backup Cameras 10" Mirror Dashcam AHD Receiver DVR Function
Specification:
Camera
| Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 120° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
10 Inch Rearview Mirror
| Built-in image sensor | 2 mega pixel |
| Viewing angle | 130° |
| Video resolution | 1920*1080 |
| Storage compression method | MJPEG |
| Video format | MOV |
| Touch TP | Support, single touch |
| Storage Temperature | -20℃-70℃ |
| Operating Temperature | 0℃-50℃ |
| Operating humidity | 15-65%RH |
| SD Card | 128GB Micro SD Card[TF] |
| Standard Voltage | DC5V |
Features:
1. First item 10 Inch AHD digital wireless streaming rear view mirror DVR
2. 10 Inch big touch screen and Anti-glare screen,Built-in image sensor:2 mega, built-in front camera.
3. Support front and back 1080P dual recording, front and back camera split screen display at the same time.support playback online.
4. With data line 3.5M, apply to different type of vehicles for wiring.more convenient.
5. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting,easy to operate.
6. Receiver with Unique outward appearance design. high appearance.
7. Apply to vehicles: Small bridge car .pickup ,SUV,RV.
